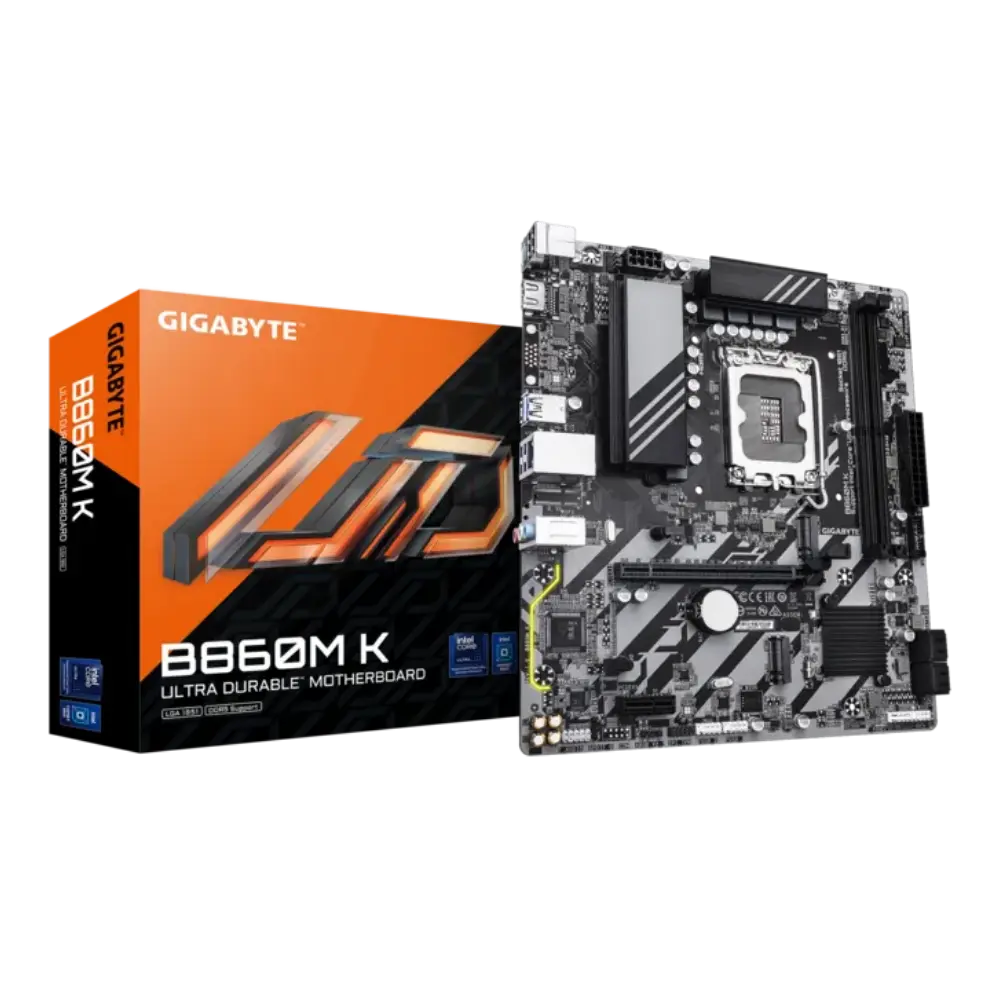

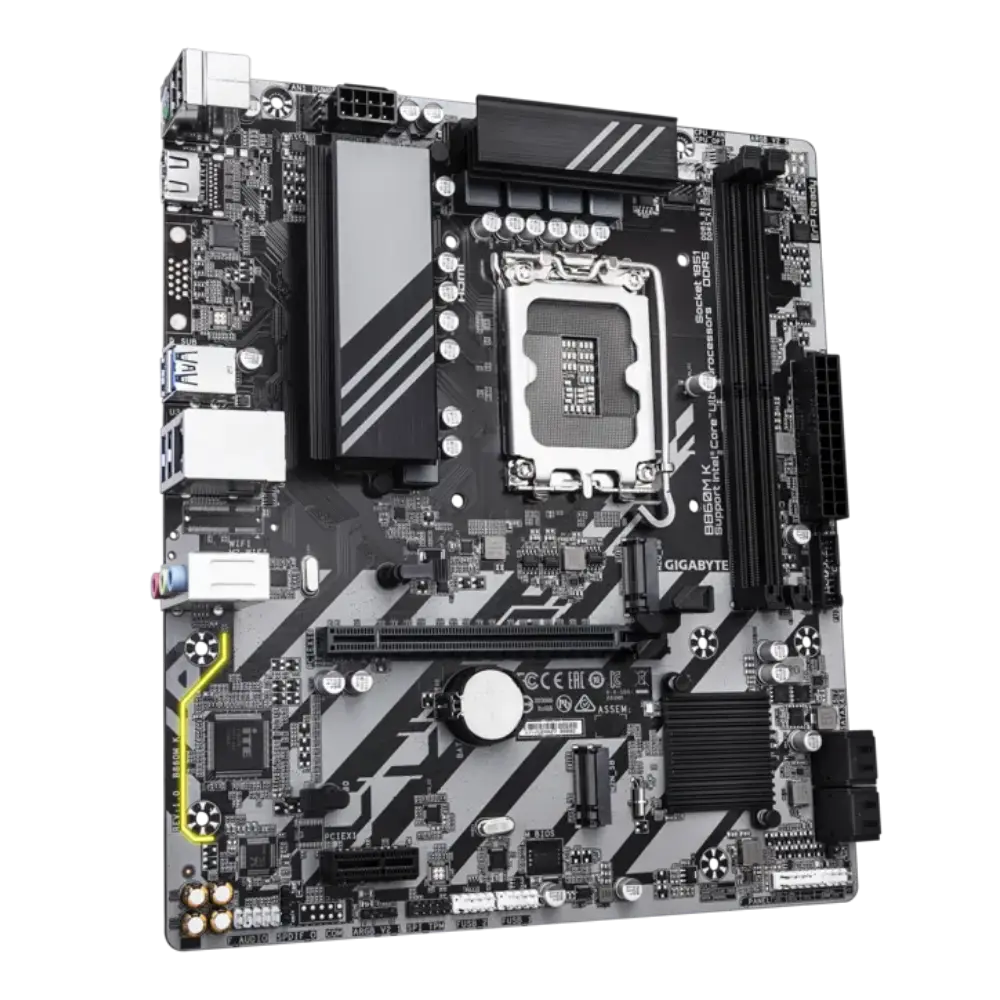

The Gigabyte B860M K DDR5 Motherboard delivers stable performance and essential connectivity for Intel® Core™ Ultra processors. Featuring DDR5 memory support up to 8800 MT/s, PCIe 4.0 expansion, and dual M.2 slots, it ensures reliable operation for mainstream desktop builds.

Specifications:

• Model: B860M K DDR5
• Chipset: Intel® B860 Express
• CPU Support: Intel® Core™ Ultra Processors, Socket LGA1851
• Memory: 2× DDR5 DIMM, up to 128GB
  • OC Speeds: Up to 8800 MT/s
  • JEDEC Speeds: 6400/5600 MT/s
  • Supports ECC (non-ECC mode), XMP profiles, dual-channel architecture
• Graphics Outputs (CPU dependent):
  • 1× HDMI 2.1 (4096×2160 @ 60Hz, HDCP 2.3)
• Expansion Slots:
  • 1× PCI-E x16 (Gen 4.0, from CPU)
  • 1× PCI-E x1 (Gen 3.0, from chipset)
• Storage:
  • 2× M.2 (PCIe 4.0 x4/x2, 2280)
  • 4× SATA 6Gb/s
  • RAID 0/1/5/10 support (SATA)
• Audio: Realtek® Codec, 2/4/5.1/7.1-channel HD Audio, S/PDIF Out
• LAN: Realtek® GbE LAN (1Gbps)
• USB Ports:
  • Rear: 4× USB 3.2 Gen 1, 2× USB 2.0
  • Internal: 2× USB 3.2 Gen 1, 4× USB 2.0
• Internal I/O: ATX_PWR, CPU_PWR, CPU Fan, Pump headers, RGB Gen2 headers, TPM 2.0 header, COM, Audio, SATA, Clear CMOS jumper

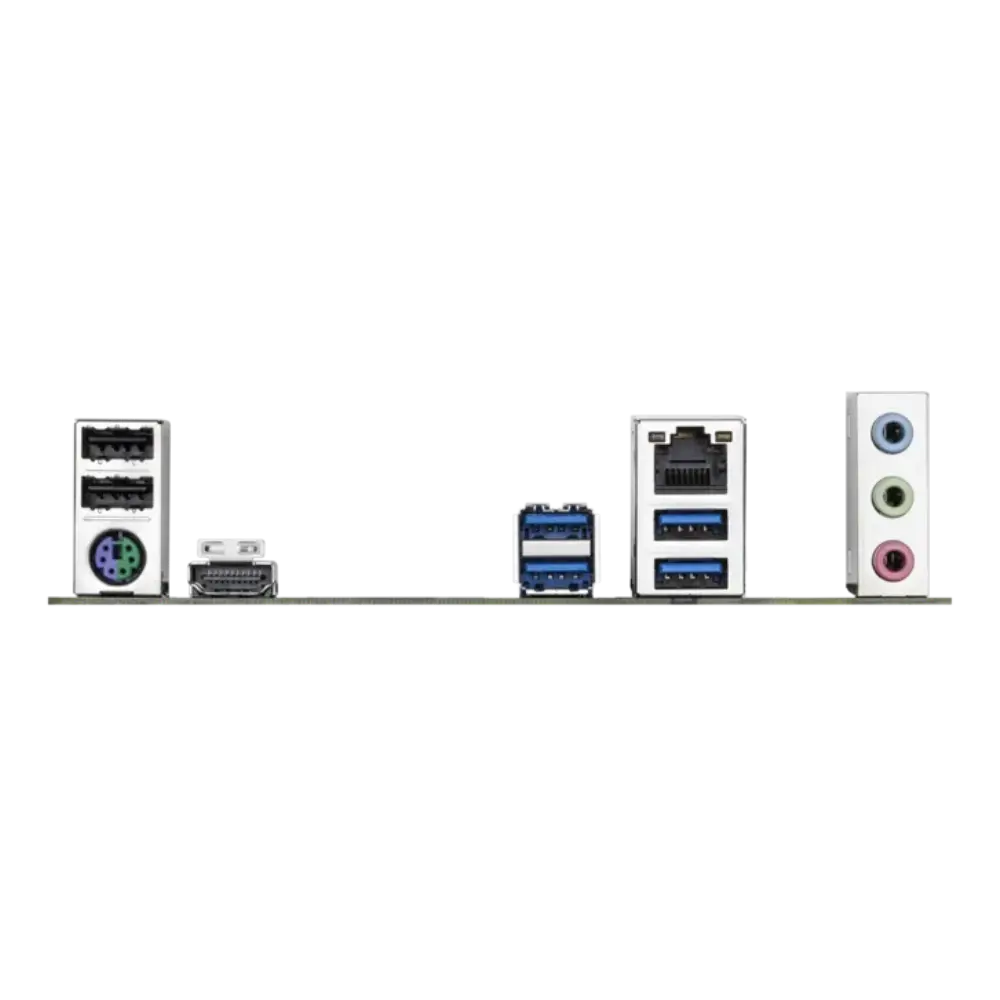

• Back Panel: PS/2, HDMI, 4× USB 3.2 Gen 1, 2× USB 2.0, RJ-45, 3× audio jacks
• BIOS: AMI UEFI BIOS, 256 Mbit flash
• Features: Gigabyte Control Center (GCC), Q-Flash, Smart Backup
• OS Support: Windows 11/10 (64-bit)
• Form Factor: Micro ATX (24.4 × 21.5 cm)

Key Features:
✅ Supports Intel® Core™ Ultra CPUs (LGA1851).
✅ DDR5 memory up to 8800 MT/s with XMP support.
✅ Dual M.2 PCIe 4.0 slots plus 4× SATA with RAID.
✅ Realtek GbE LAN and 7.1-channel HD audio with S/PDIF.
✅ Compact mATX design with RGB Gen2 headers.
