| CPU | LGA1851 socket, Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 8800(O.C) to 5600 MT/s, 4 x DDR5 DIMM sockets (up to 256 GB), Dual-channel architecture, ECC and non-ECC Un-buffered DIMM support, XMP support |
| Onboard Graphics | – Integrated Intel® HD Graphics – 1 x USB4® USB Type-C® port (3840×2160@144 Hz, DisplayPort 2.1) – 1 x DisplayPort (3840×2160@144 Hz, DisplayPort 2.1) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, 7.1-channel configuration via software |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7925 or Realtek® Wi-Fi 7 RTL8922AE (Wi-Fi 7, Bluetooth 5.4, 2.4/5/6 GHz bands) |
| Expansion Slots | – CPU: 1 x PCIe 5.0 x16 slot (supports graphics or NVMe SSD) – Chipset: 2 x PCIe 4.0 x16 slots (running at x4) |
| Storage Interface | – CPU: 1 x PCIe 5.0 x4 M.2 connector, 1 x PCIe 4.0 x4 M.2 connector – Chipset: 2 x PCIe 4.0 x4 M.2 connectors, 1 x SATA/PCIe 4.0 x4 M.2 connector, 4 x SATA 6Gb/s connectors – RAID 0/1/5/10 support for NVMe and SATA devices |
| USB | – CPU: 1 x USB4® USB Type-C® (back panel) – Chipset: 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 24-pin ATX, 2 x 8-pin ATX 12V, CPU and system fan headers, RGB and addressable RGB headers, USB Type-C®, USB 3.2 Gen 1, USB 2.0/1.1 headers, front panel, front panel audio, M.2 sockets, SATA connectors, Trusted Platform Module header, Q-Flash Plus, power/reset/Clear CMOS jumpers |

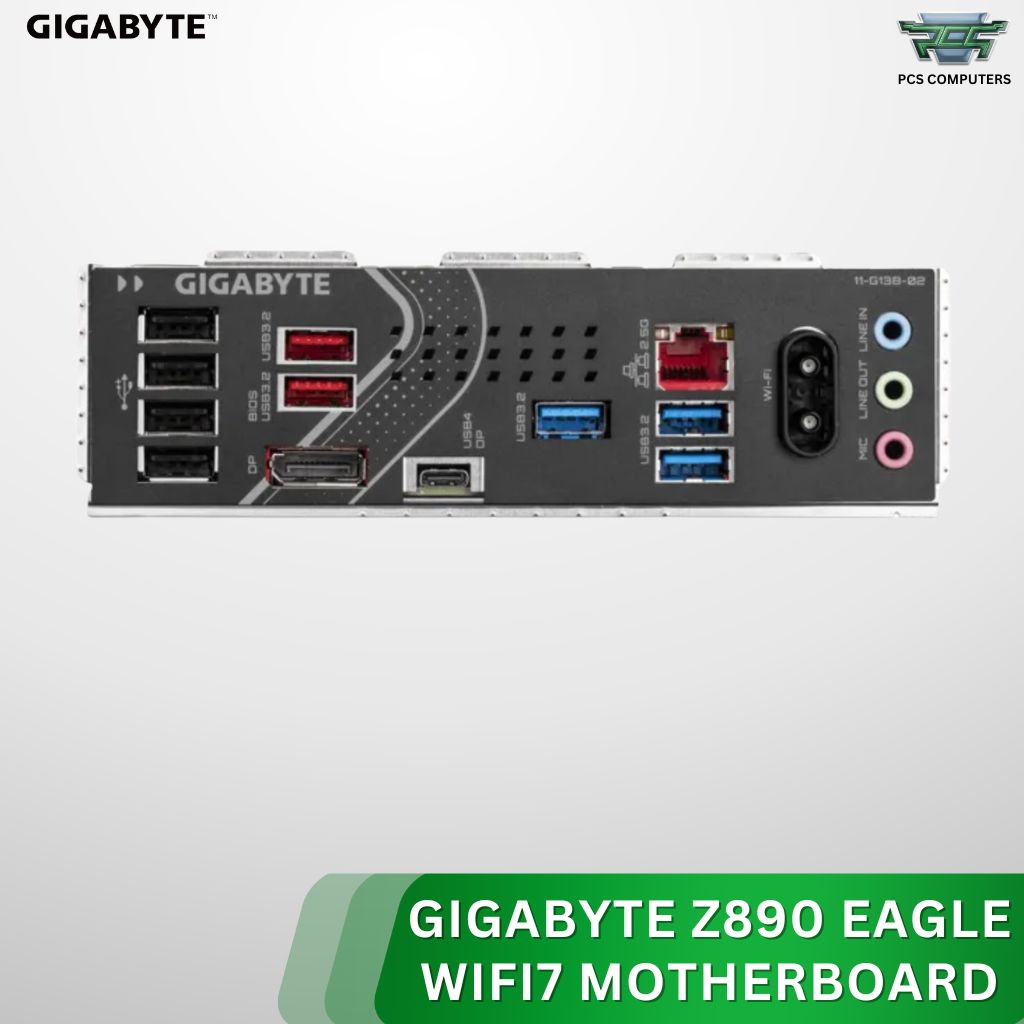

| Back Panel Connectors | 1 x USB4® USB Type-C®, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, DisplayPort, 2 x antenna connectors, RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
Specification may change without further notice.
