Description
XT M3
Compact Micro ATX Gaming Chassis
The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.

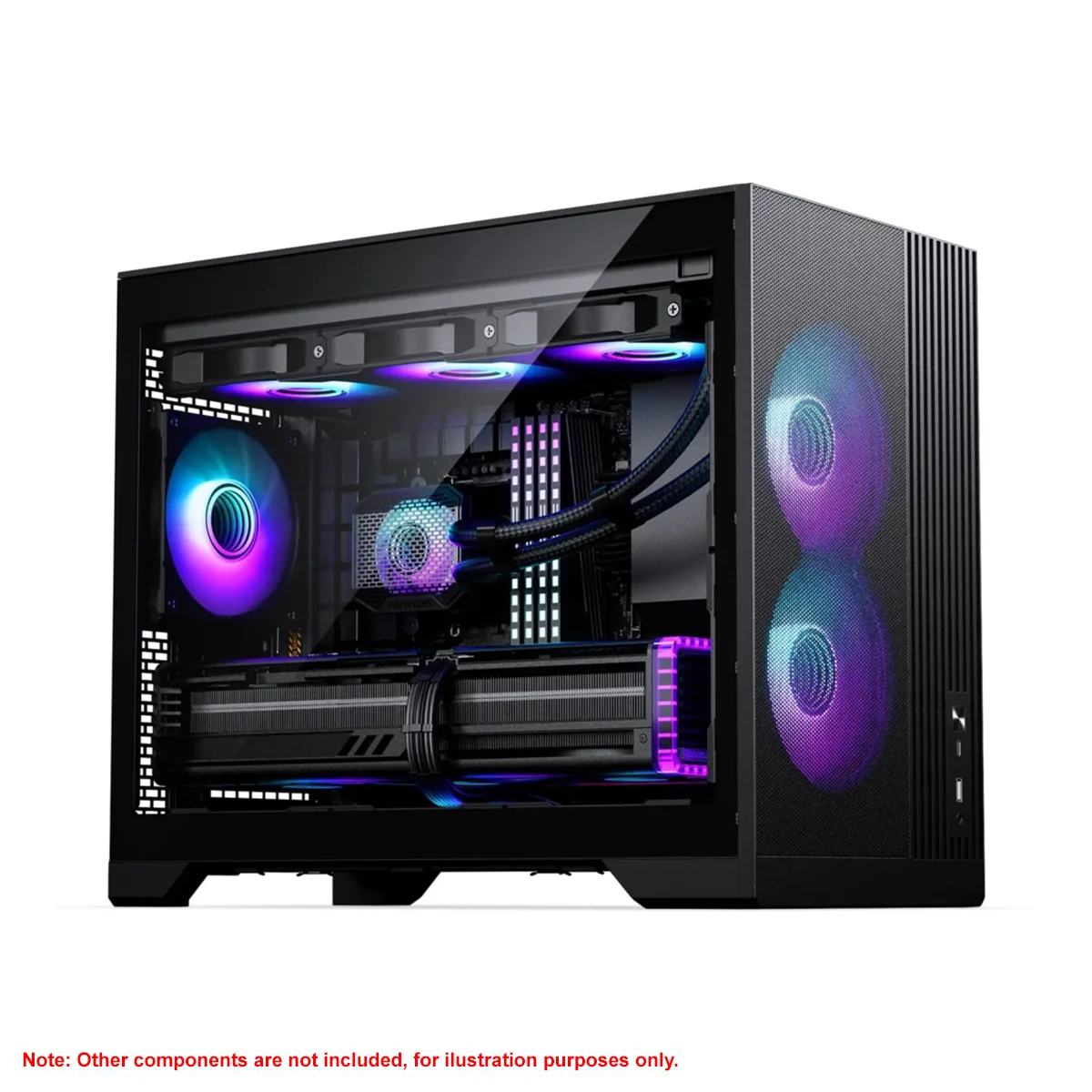

Note: Other components are not included, for illustration purposes only.
Specification:
| Specifications | |
|---|---|
| General | |
| Case Dimensions | 460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
| Form Factor | Compact microATX tower |
| Mainboard Support | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black White |
| Expansion | |
| Expansion Slots | 4 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2 |
| Internal 3.5″ Positions | 1 |
| Front I/O | |
| 1x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone / Headphone combo Power button |
|
| Fans (120 | 140) | |
| Total | 9 | – |
| Top | 3 | – |
| Front | 2 | – |
| Side | – | – |
| Rear | 1 | – |
| Bottom | 3 | – |
| Radiator (120 | 140) | |
| Top | Max. 360 | – |
| Front | – | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler Height | 175 mm | 6.88 in |
| GPU Length | 430 mm | 15.94 in (Without front fans installed) |
| GPU Width | 175 mm | 6.88 in |
| Power Supply Length | 150 mm | 5.90 in |
| Top 360 Radiator | 410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in |
| Extra | |
| Net Weight | 5.57 kg | 12.28 lbs |
| Gross Weight | 6.90 kg | 15.21 lbs |
